MCM Powertrack - Sistemas de transporte monorraíl aéreo

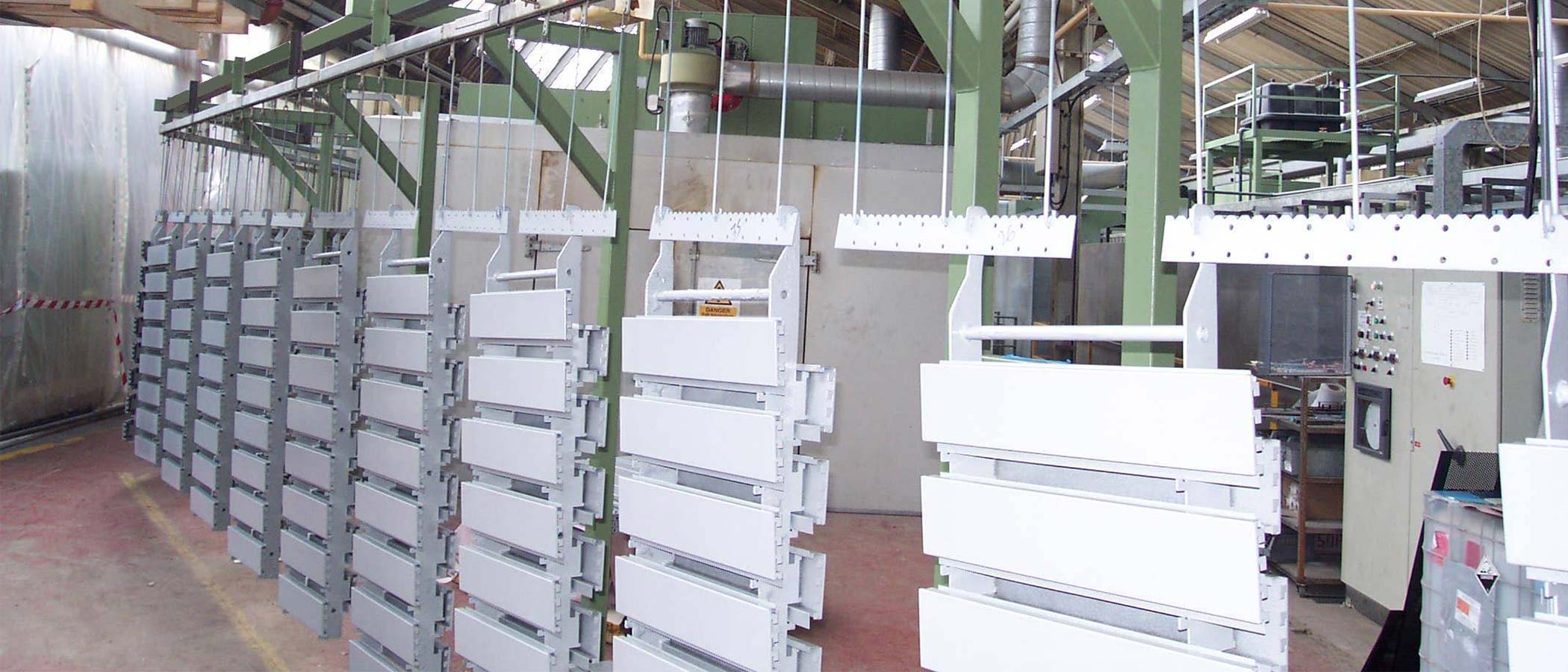

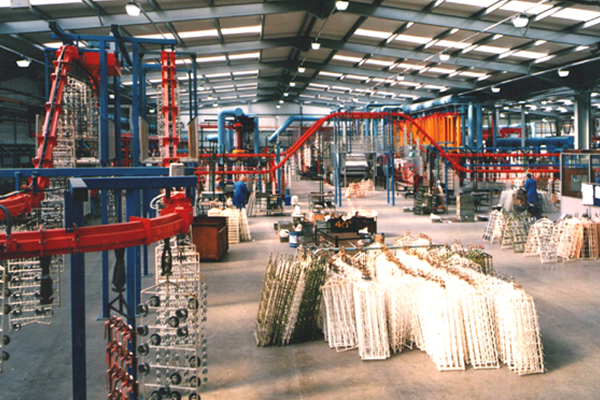

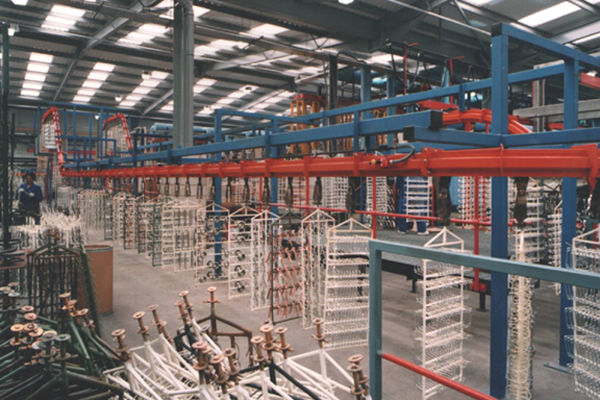

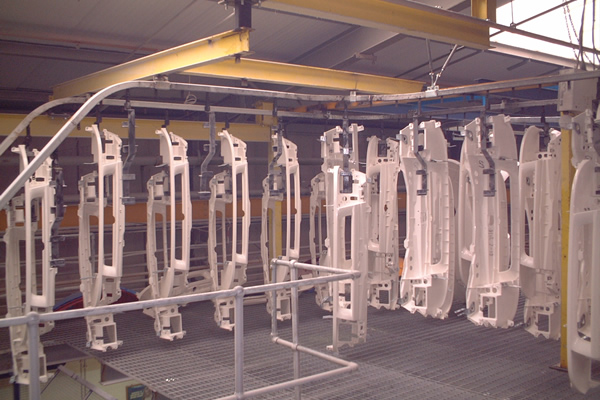

Una gama de transportadores aéreos monorraíl de cadena adecuados para manipular una amplia variedad de productos en numerosos sectores industriales, como la automoción, el acabado de superficies, el procesamiento de carne y la fabricación en general. Los transportadores aéreos MCM Powertrack se presentan en dos tipos: «cadena cerrada» para cargas de hasta 100 kg, donde la cadena motorizada se desplaza dentro de un riel cerrado de acero prensado, y «cadena abierta» para cargas más pesadas de hasta 500 kg, donde la cadena se suspende bajo un perfil en I de acero laminado mediante carros.
Transportadores aéreos MCM Powertrack
Transportadores aéreos MCM Powertrack
Transportadores aéreos MCM Powertrack
Sistemas de transporte de cadena cerrada Powertrack
Estos sistemas constan de una cadena biplanar accionada por una unidad motriz que se desplaza sobre una vía de acero cerrada, la cual puede tener una sección transversal rectangular o una forma cruciforme cuando se requiere una mayor capacidad de carga.
Sistemas de transporte de cadena abierta Powertrack

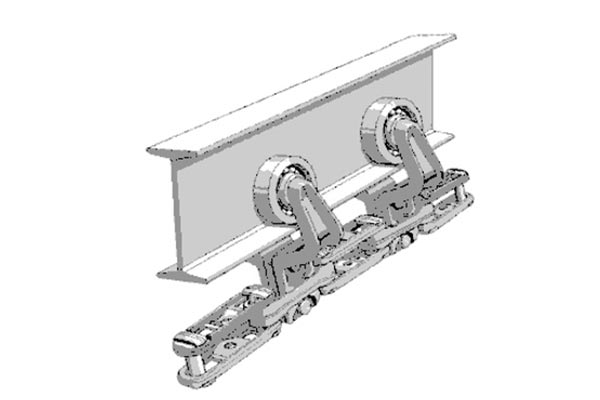

La gama Powertrack de cadena abierta, PT200 y PT500, utiliza un tramo de vía en forma de viga en I del que cuelga una cadena forjada mediante carros cuyas ruedas se deslizan sobre el ala inferior de la viga en I.
Frequently Asked Questions About MCM Powertrack
MCM Powertrack is a range of monorail overhead chain conveyor systems designed for handling a wide variety of products. The range includes enclosed-chain systems for medium loads and open-chain systems for heavier-duty applications.
Enclosed-chain Powertrack conveyors run the powered chain inside an enclosed steel track and are designed for loads up to 100 kg per pendant. Open-chain Powertrack conveyors use an I-beam track with the chain suspended beneath it by trolleys and are available for heavier loads up to 500 kg.
The enclosed-chain system uses a bi-planar chain powered by a drive unit and running inside an enclosed steel track. Pendants are attached to the chain at regular pitches and project through a slot in the underside of the track, allowing products to be suspended from the conveyor.
Open-chain Powertrack systems use an I-beam track section with a drop-forged chain suspended beneath it by trolleys. The trolley wheels run on the lower flange of the I-beam, providing a robust arrangement for heavier-duty product handling.
MCM Powertrack systems are available for a range of load requirements. Amber Industries' published technical data lists enclosed-chain models with capacities from 23 kg to 100 kg per pendant and open-chain models with capacities up to 500 kg. The appropriate model depends on the load and application requirements.
Yes. On enclosed-chain Powertrack systems, higher loads can be accommodated by using loadbars connecting two or more pendants, allowing the load to be shared between them. The conveyor configuration must be selected to suit the particular product and application.
Yes. Amber Industries states that its enclosed-chain Powertrack conveyor systems can operate in temperatures up to 250°C, making them suitable for applications where heat is applied to the product. High-temperature lubrication systems are used to help maintain reliable operation under these conditions.
MCM Powertrack conveyors can be used across a wide range of manufacturing and processing industries. Applications include automotive, surface finishing, meat processing and general manufacturing.
Yes. The modular Powertrack design includes vertical and horizontal track bends and bolted support and clamp assemblies, providing flexibility when configuring conveyor layouts to suit the available space and production process.
Yes. The modular construction of the Powertrack range allows existing conveyor systems to be modified or extended. Modifications and extensions can be undertaken with minimum disruption and downtime, subject to the requirements of the existing installation and the proposed changes.
